    FTTH Drop Fiber Optic Pigtail With Black LSZH Jacket

    Ask Lasest Price
    Brand Name : Fujioptics/OEM/ODM
    Model Number : FJ-SC012
    Certification : ROHS.CE ,ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/P, Western Union
    Supply Ability : 10000pcs
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    FTTH Drop Fiber Optic Pigtail With Black LSZH Jacket

    FTTH Drop Fibe Pigtail with Black LSZH Jacket for Indoor / Outdoor

    Features:


    Complies with IEC, Telcordia GR-326-CORE standard

    Low insertion loss and high return loss
    PC/UPC/APC polishing
    Diameter:0.9, 2.0, and 3.0mm
    Fiber jumper of the Single or multi mode is available
    Simplex or duplex is available
    PVC or LSZH fiber optical cable is available
    Excellent changeability and repeatability
    Tensile strength:10N
    Operating temperature range:-40 to 80°C
    Storage temperature range:-40 to 80°C
    Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)


    Application:


    Premise installations

    Wide Area Networks (WANs)

    Telecommunication networks

    Active device termination

    Local Area Networks (LANs)

    Data processing networks


    Specification:


    Specifications
    Test ItemTest ConditionValue(dB)
    UPCAPC
    Optical PerformanceInsertion Loss1310nm LED light source<0.3<0.3
    Return Loss1310nm LD light source>50>60
    Environmental Performance (Max. Insertion Loss change)High temperature+85oC,168 hours<0.2
    Temperature Cycle-40-+75oC, 21 Cycles 168 hours<0.2
    Humidity Aging+75oC, 95%R.H,168 hours<0.2
    Humidity/Condensation Cycling-10-+65oC, 90%~100%RH, 14 cycles 168 hours<0.2
    Mechanical Performance ( Max. Insertion Loss change)Vibration10-55Hz, 1.5mm(p-p)<0.2
    Flex0.9kgf,-90o~+90o repeat for 100 cycles<0.2
    Torsion1.35kgf, ±900o,10times<0.2
    Withstand tensile90N,10min<0.2
    DropH=1.5M,Total of 8 drops<0.2
    ExchangeabilityRandomly<0.2
    Durability500 times<0.2


    Order Information:

    Boot (cable)

    Size

    Boot

    Color

    Fiber TypeCable numberApplicationLength
    0.9mmBlack9/125μm (SM)SimplexPCCustomized
    2.0mmGreen50/125μm (MM)DuplexAPC
    3.0mmRed62.5/125μm (MM)Fan-out (4f)
    Fan-out (6f)
    Fan-out (8f)
    Fan-out (12f)


    Product Picture:

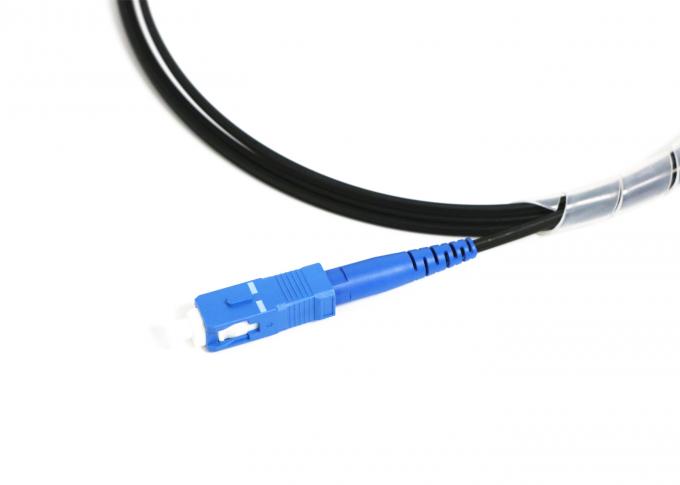

    FTTH Drop Fibre Optic Pigtails With Black LSZH Jacket For Indoor / Outdoor 0FTTH Drop Fibre Optic Pigtails With Black LSZH Jacket For Indoor / Outdoor 1
