    2.0mm 3.0mm Simplex Duplex Fiber Optic Pigtail

    Ask Lasest Price
    Brand Name : Fujioptics/OEM/ODM
    Model Number : FJ-SC03
    Certification : ROHS.CE ,ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/P, Western Union
    Supply Ability : 10000pcs
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    2.0mm 3.0mm Simplex Duplex Fiber Optic Pigtail

    2.0mm 3.0mm Fiber Optic Pigtail Simplex , Duplex with ROHS Certificate


    Description:


    A Fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
    Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.


    Features:

    3D fiber interferometer is available

    Pluggable structure, easy to intensive-installation

    Meets RoHS and Bell core GR 326-core standards

    Custom Configurations Available at No Extra Charge

    Low insertion loss and high return loss

    Serialized & Individual Test Records

    Guaranteed Zero Defects

    Applications:

    Telecommunication networks

    Computer networks

    CATV networks
    Offshore, Power Generation, Oil & Gas
    Railways
    Active device termination
    Instrumentation


    Specification:

    Fiber optic pigtail Technical Standard:
    Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;
    Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
    MM PC≥ 35dB, UPC≥35dB
    Interchangeability: ≤ 0.2dB
    Salt Spray: ≤ 0.2dB
    Repeatability: (1000 times) ≤ 0.1dB
    Vibration: (550Hz 1.5mm) ≤ 0.1dB
    High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
    Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
    Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
    Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db
    Apex Offset: 0μ m≤ ≤ 50μ m
    Radius of Curvature: 7mm≤ ≤ 25mm
    Cable Type: Simplex, Duplex, Fan-Out;

    Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,

    ESCON etc.

    Fiber Mode: SM (single mode) G652D, G655, G657,
    MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)


    Order Information:

    Fiber Optic Patch Cord
    Connector TypeCeramic Ferrule
    End Face

    Cable Diameter

    (mm)

    Simplex/DuplexSingle mode
    /Multi-mode

    Length

    (meter)

    FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    STPC/UPCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    LCPC/UPCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    MUPC/UPCΦ0.9, Φ2Simplex/DuplexSM/MMCustomized
    MTRJPC/UPCΦ0.9, Φ2DuplexSM/MMCustomized

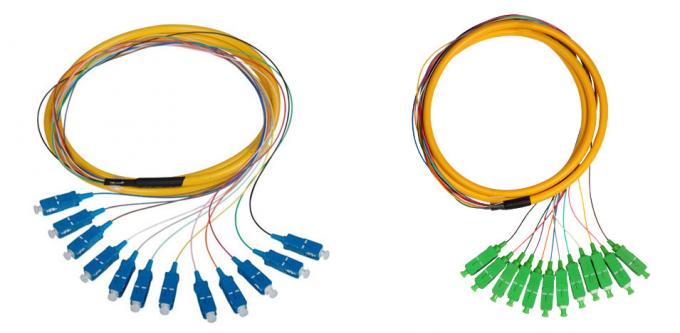

    Product Picture:

    Quality 2.0mm 3.0mm Simplex Duplex Fiber Optic Pigtail for sale
