    Armoured Waterproof Optical Fiber Pigtail With G652D G657A1 Fiber

    Ask Lasest Price
    Brand Name : Fujioptics/OEM/ODM
    Model Number : FJ-SC02
    Certification : ROHS.CE ,ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, D/P
    Supply Ability : 10000pcs
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Armoured Waterproof Optical Fiber Pigtail With G652D G657A1 Fiber

    Armoured Waterproof Fiber Optic Pigtail with G652D G657A1 Fiber


    Description:

    Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

    Feature:

    4, 6, 8, 12, 24, 48 fibers optional.
    With heat shrinkable tube.
    Applicable connector: FC, SC, ST, LC.
    Cable material: PVC.
    Single mode or multi mode.
    Cable size: Φ 0.9mm.

    Polishing: .Low in PC/UPC/APC Polishing.

    Low insertion loss and back reflection loss.

    Application:

    FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
    Video transmission , Data transmission
    Active Device Termination
    Premise Installations
    Telecommunication and Data processing Networks
    Industrial, medical & military
    Systems Integration for Long Haul, Metro and Access Network

    Specification:

    Fiber optic pigtail Technical Standard:
    Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;
    Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
    MM PC≥ 35dB, UPC≥35dB
    Interchangeability: ≤ 0.2dB
    Salt Spray: ≤ 0.2dB
    Repeatability: (1000 times) ≤ 0.1dB
    Vibration: (550Hz 1.5mm) ≤ 0.1dB
    High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
    Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
    Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
    Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db
    Apex Offset: 0μ m≤ ≤ 50μ m
    Radius of Curvature: 7mm≤ ≤ 25mm
    Cable Type: Simplex, Duplex, Fan-Out;

    Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,

    ESCON etc.

    Fiber Mode: SM (single mode) G652D, G655, G657,
    MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)


    Order Information:

    Fiber Optic Patch Cord
    Connector TypeCeramic Ferrule
    End Face

    Cable Diameter

    (mm)

    Simplex/DuplexSingle mode
    /Multi-mode

    Length

    (meter)

    FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    STPC/UPCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    LCPC/UPCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    MUPC/UPCΦ0.9, Φ2Simplex/DuplexSM/MMCustomized
    MTRJPC/UPCΦ0.9, Φ2DuplexSM/MMCustomized

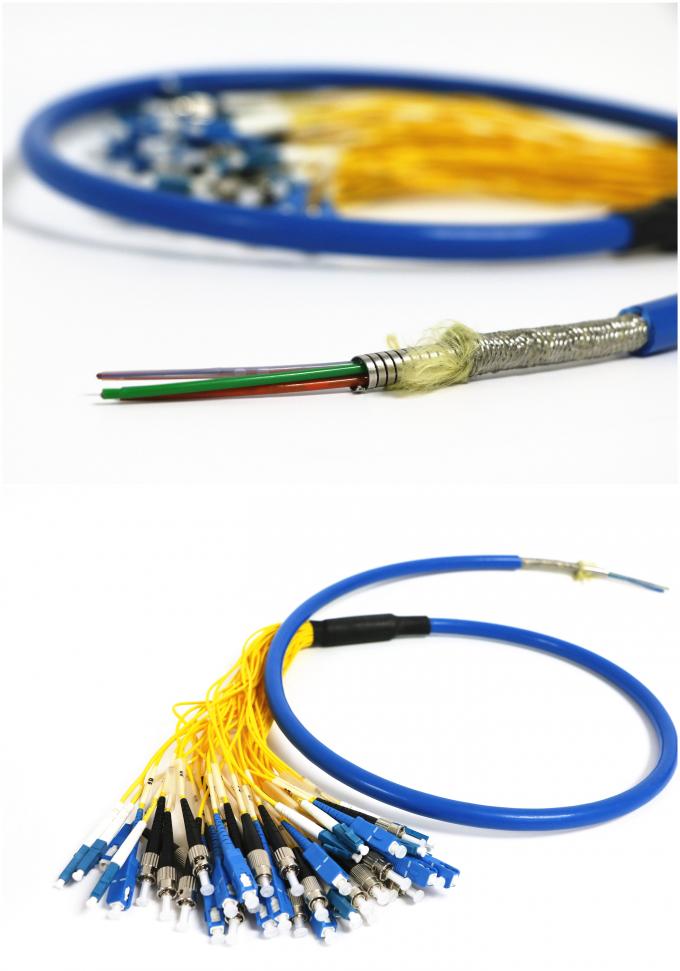

    Product Picture:

    Quality Armoured Waterproof Optical Fiber Pigtail With G652D G657A1 Fiber for sale
