    12 Core LC To MPO Fiber Optic Jumper For FTTH

    Ask Lasest Price
    Brand Name : FUJI
    Certification : ISO,CE,ROHS
    Price : Negotiable
    Supply Ability : 10000pcs
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

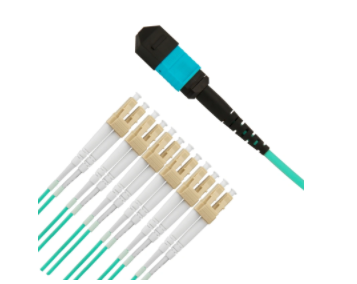

    12 Core LC To MPO Fiber Optic Jumper For FTTH

    Optical jumper 12core LC to MPO fiber optic patch cord


    Features:

    MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and Lclass(super low loss).


    1.Single mode and multi mode (flat) APC(catercorner 8 degree angled)available

    2.High fiber density (maximum 24 fibers for Multimode)

    3. Fiber in single connector: 4, 8, 12 24

    4.Insert/Pull latching connector

    5.High reflection loss with APC

    6.Comply with Telcordia GR-1435-CORE specification and Rosh standard

    Applications:

    1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

    2.Video transmission , Data center

    3.Active Device Termination

    4.Premise Installations

    5.Telecommunication and Data processing Networks

    6.Industrial, medical & military

    Specifications:

    Type/PerformanceSinglemode(APC polish)Multimode(PC / Flat Polish)
    StandardLow LossStandardLow Loss
    Maximum Insertion Loss≤ 0.75dB≤ 0.35dB≤ 0.60dB≤ 0.35dB
    Return Loss≥ 50dBN/A
    Operating Temperature-40°C to 80°C40°C to 80°C
    Test Wavelength1310nm850nm


    Company Information:
    Fujioptics Technologies Co., Ltd ismanufacturing and technical service-oriented enterprise focusing on the production of optical fiber communication devices, also provide OEM, raw material sales, product technology testing services.Main products:high density multi-core connector, 40G/100G/200G/400G module connector, module/device test standard line, bus bar for test equipment, jumper calibration line, polarization-maintaining product, optical fiber connector, passive device test equipment, passive device production equipment, passive device clamp design, passive device production consumables, and active module OEM/ODM service.
