OFNR Jacket MPO/MTP Harnesses Cable For 40G Network

    Buy cheap OFNR Jacket MPO/MTP Harnesses Cable For 40G Network from wholesalers

    Buy cheap OFNR Jacket MPO/MTP Harnesses Cable For 40G Network from wholesalers
    • Buy cheap OFNR Jacket MPO/MTP Harnesses Cable For 40G Network from wholesalers

    OFNR Jacket MPO/MTP Harnesses Cable For 40G Network

    Ask Lasest Price
    Brand Name : Fujioptics
    Model Number : MPO/MTP Jumpers
    Certification : ROHS ,ISO9001,GR-326
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    OFNR Jacket MPO/MTP Harnesses Cable For 40G Network

    MPO/MTP Harnesses Cables,Supports to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available


    FEATURES

    100% pre-terminated and tested in factory to ensure transfer performance

    Rapid configuration and networking, reduce installation time

    Supports 40G and 100G network applications

    Jacket material: LSZH, OFNR, OFNP available

    Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available


    APPLICATION

    Data communication network

    Optical System Access network

    Storage area networking fiber channel

    High density architectures


    PRODUCT PARAMETERS

    Performance Level

    Standard

    Elite

    Connector

    Mode

    Endface

    IL(max) (dB)

    RL(min) (dB)

    IL(max) (dB)

    RL(min) (dB)

    MPO/MTP

    SM

    12F/APC

    0.70

    60

    0.35

    60

    24F/APC

    0.75

    60

    0.35

    60

    48F/APC

    0.75

    60

    MM

    12F/PC

    0.50

    20

    0.35

    20

    24F/PC

    0.50

    20

    0.35

    20

    48F/PC

    0.50

    20

    LC/SC/FC/ST

    SM

    APC

    0.30

    60

    0.10

    60

    UPC

    0.20

    50

    0.10

    50

    MM

    PC

    0.20

    30

    0.10

    30


    Note:

    1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

    2.Standard conformance: GR-326,GR-1435.


    Mechanical Properties

    Item

    Criteria

    Conformance

    IL After 50 Matings

    MPO/MTP

    ≤0.3dB

    GR-1435

    IL After 500 Matings

    LC/SC/FC/ST

    ≤0.2dB

    IEC 61300-2-2

    Min Bend Radius (Dynamic)

    20*OD (Cable Diameter)

    Min Bend Radius (Static )

    15*OD (Cable Diameter)

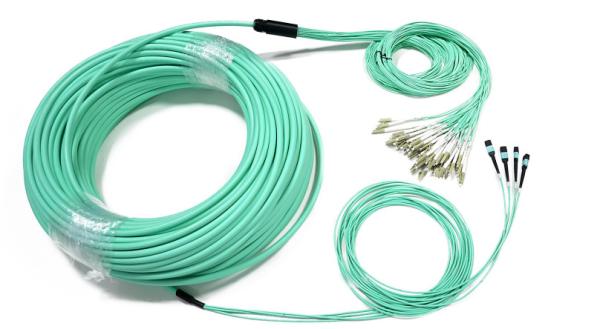

    PHOTO SHOW

    Quality OFNR Jacket MPO/MTP Harnesses Cable For 40G Network for sale
