Brand Name : | Fujioptics |
Model Number : | FUJI-MPO |
Certification : | ROHS,CE ,ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 10000pcs |
Delivery Time : | 5-7 working days |
12F 24F MPO MTP MM OM3 OM4 Fiber Optic Patch Cord/Fiber
Cable/Jumper
CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.
Fiber Type: OS2/OM3/OM4
* Fiber Count: 4/8/12/24 core
* Cable Type: Bare fiber/Flat/Round
Specification:
Item | Parameter | ||||
MPO/MTP Connector | Standard SM | Low Loss(Elite) SM | Standard MM | Low Loss MM | |
Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
Maximum | 0.75dB | 0.35dB | 0.60dB | 0.35dB | |
Return Loss | ≥60 for APC (8 Angle Polish) | ≥20 for PC | |||
≥50 for PC | -- | ||||
Male/Female | Male: With Pins, Female: Without Pins | ||||
Tensile Strength | ≤0.3 (Max 66N) | ||||
Vibration | ≤0.3 (10 ~ 55Hz) | ||||
Thermal Cycle | ≤0.3 (-40 ~ 75ºC, 21Cycles) |

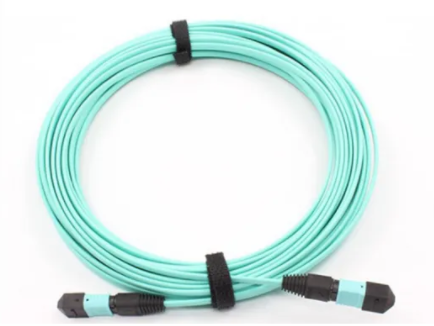

Product View:
Our Services:
1.Order inquiry: Keep working time from 8.30AM to 23PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the
right delivery time to clients
3.Before shipment: Our sales would double check the order quantity,package and
strength of cartons to avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
If you interest or have any question, Why not send inquiry? Welcome
& Just Do It !!!
![]() |
