MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable

Fuji Science & Technologies (Wuhan) Co., Ltd.
Contact Now
    Buy cheap MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable from wholesalers

    Buy cheap MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable from wholesalers
    • Buy cheap MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable from wholesalers

    MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable

    Ask Lasest Price
    Brand Name : FUJIIOPTICS
    Model Number : FUJI-M001
    Certification : ROHS ,ISO9001 ,CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable

    MTP PRO FIBER ASSEMBLIES


    Description:

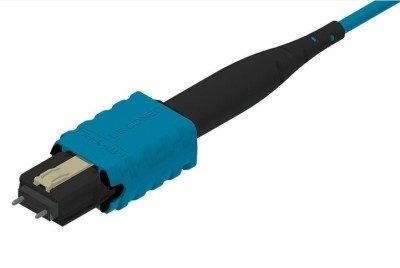

    MTP® PRO Fiber Assemblies by utilizing the newest MTP® PRO connector, which provides optimal flexibility in the field by bringing simple and robust field configurability, ease of use and enhanced performance to the existing MTP® multi-fiber cabling.


    By utilizing the newest MTP® PRO connector, the MTP® PRO fiber assemblies can be reconfigured easily for changing polarity, thus eliminates the need for a skilled technician to remove the connector housing, exposing delicate fibers and putting the cable assembly at risk.


    FEATURES AND APPLICATIONS

    Integrated Push-Pull sleeve

    - Robust push-pull insertion and extraction housing design for ease of use and access


    Robust field configurability for polarity change

    - Simple one-step color coded polarity change feature without removing connector housing


    Field pin changeable for optimal flexibility

    - Field friendly configuration while maintaining product integrity with safe handling of pins and easy color identification


    Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure

    - Satisfies client's needs in different industries

    Superior optical performance

    - Telcordia compliant for end face geometry ensuring low loss budget

    DETAILS

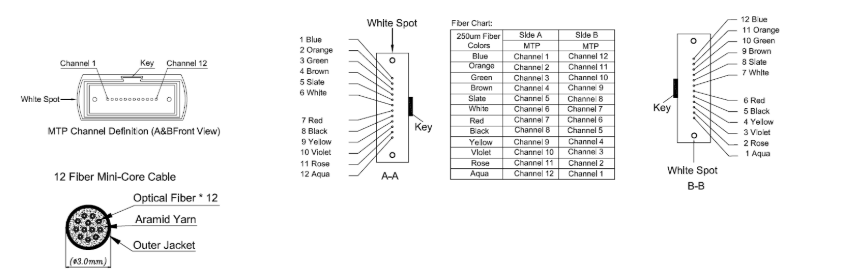

    MTP Termination

    ** Fujioptics works with customer to provide highly customized products with different specifications & required optical performance in a flexible pricing scheme. The above optical performance is one of our product tier only, please contact our sales for more details.


    Example:

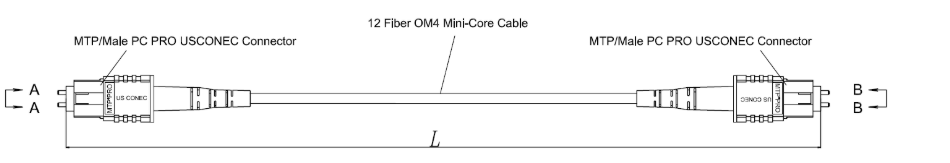

    Item Description: MTP® PRO Patchcord, 12-Fiber, MTP® PRO (with pin) to MTP® PRO (with pin), OM4, Mini-Core, Riser (OFNR), Length: 5 Meters

    Quality MTP PRO Fiber Assemblies MPO Jumper OS2 OM3 OM4 8 12 24 Fiber Optic Patch Cable for sale
