Brand Name : | FUJIOPTICS |
Model Number : | FUJI-M002 |
Certification : | ROSH ,ISO ,CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 10000pcs |
Delivery Time : | 5-10 working days |
MTP / MPO Jumper 16F & 32F Solutions Fiber Optic Patch Cord Long - Life
Description:
Fujioptics offer the industry-leading density 16-core MTP/MPO fiber
assemblies to support 400G transmission. The assemblies are offered
in single row 16-fiber and 32-fiber (2x16) configurations to
achieve the highest density physical contact for multi-fiber
connectors in the market.
This high density trunk cable can directly couple into 16x25G
active devices, which complied by TelcordiaGR-326 Core, TIA 604-18
(FOCIS 18) and IEC(61754-7-3) standards.
FEATURES AND APPLICATIONS:
100% factory tested with traceable test data
- Comply Telcordia GR-326 Core, TIA 604-18 and IEC(61754-3)
standards
16-Fiber or 32-Fiber (2x16 Configurations)
- Highest density physical contact for multi-fiber connectors
Ultra high fiber count cabling solution
- Support 400G transmission for Hyperscale Data Center
Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure
- Satisfies client's needs in different industries
Stringent manufacturing process
- Superior optical performance to satisfy customers' need
16-core MTP used in high density trunk solution
- Deploy directly into 16x25G active devices
DETAILS
16F MTP/MPO Assemblies
32F MTP/MPO Assemblies
Example:

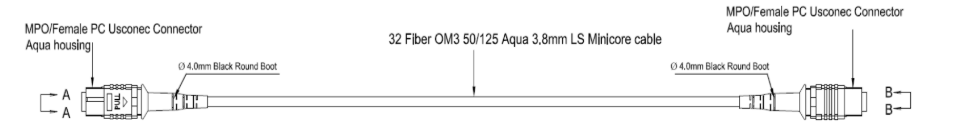

Item Description: MTP/MPO(2x16) to MTP/MPO(2x16), 32-fiber, OM3, Minicore, LSZH
![]() |
