SC LC FC ST MU MPO Fiber Optic Patch Cord Low Insertion Loss And High Return Loss
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV,
an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
| Item | Parameter | ||

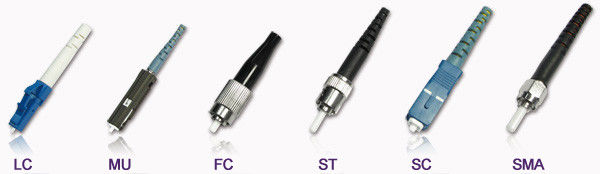

| Connector | FC , SC , ST , LC , MU , SMA | ||
| Mode | SM | MM | |
| Endface Application | UPC | APC | PC |
| Insertion Loss(db) | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(db) | ≥50 | ≥65 | |
| Cable Dia(mm) | Φ3,Φ2,Φ0.9 | ||
| Exchangeability(db) | ≤0.2 | ||
| Vibration(db) | ≤0.2 | ||
| Temp.Range(°) | ≤0.2(-40~80°C) | ||
Geometric Parameter of Endface
| Item | Parameter | ||
| Endface Polishing | PC | APC | |
| Radius of Curvature | SC | 10~25 | 5~12 |
| LC | 7~25 | 5~12 | |
| Apex Offset(um) | ≤50 | ||
| Fiber Spherical(nm) | -90~+50 | ||
| Angular Error(°) | --- | 8°±0.3° | |
Ordering Information
Fanout Cord: FC /APC - SC /UPC / SM / Φ3 / S / LM
| 1 Connector Type | FC,SC,ST,MU,LC,SMA |
| 2 Endface | PC,UPC,APC |
| 3 Connector Type | FC,SC,ST,MU,LC,SMA |
| 4 Endface | PC,UPC,APC |
| 5 Fiber Mode | SM=Single mode,MM=Multimode |
| 6 Cable Diameter | Φ0.9,Φ1.6,Φ2.0,Φ3 |

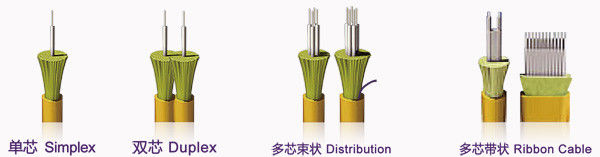

| 7 Cable Length | S:Simplex D:Duplex |
| 8 Fiber Cable | L=1,2,3,4......meter,or as required |
|
|
