Brand Name : | Fujioptic |
Model Number : | PLC-008 |
Certification : | ROHS, REACH, UL, ISO |
Price : | negotiable |
Payment Terms : | T/T, L/C |
Supply Ability : | 10,000 pcs per month |
Delivery Time : | 3~7 work days |

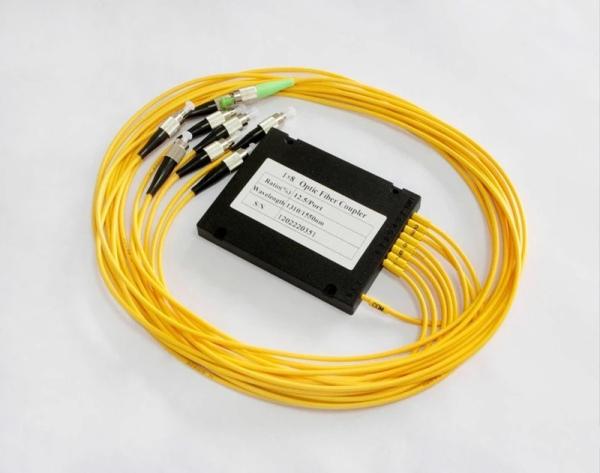

FC / SC / LC ST Connector ABS Box Fiber Optic Splitter PLC Splitter
1. Feature
Good uniformity and low insertion loss
Low polarization dependent loss
Excellent environmental stability
Excellent mechanical
Compact design,suitable for installation in optical equipment
Wide operating temperature:-40~85 ℃
High reliability and stability
2. Specification
Parameter | Unit | Value | |||||||||||
Product Type | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | 1×128 | ||
Operation Wavelength | nm | 1260~1650 | |||||||||||
Insertion Loss | Typ. | dB | 3.6 | 6 | 7 | 9.2 | 10.3 | 12.2 | 13.6 | 15.8 | 16.6 | 20.1 | 24.5 |
Max. | 4.3 | 6.2 | 7.4 | 9.5 | 10.7 | 12.5 | 13.9 | 16 | 17.2 | 21.5 | 25.5 | ||
Uniformity (Max.) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 0.8 | 1.2 | 1.4 | 1.5 | 1.5 | 2 | 2.6 | |
PDL(Max.) | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
TDL(Max.) | dB | 0.5 | |||||||||||
Return Loss | dB | ≥55/50 | |||||||||||
Directivity | dB | ≥55 | |||||||||||
Operating Temperature | ℃ | -40~85 | |||||||||||
Storage Temperature | ℃ | -40~85 | |||||||||||
Operating Humidity | %RH | ≤93 | |||||||||||
Storage Humidity | %RH | ≤93 |
3. Application
![]() |
