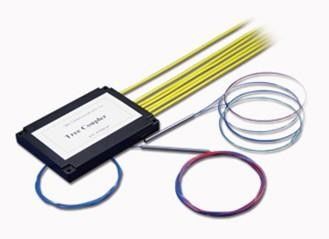

High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler

Fuji Science & Technologies (Wuhan) Co., Ltd.
Contact Now
    Buy cheap High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler from wholesalers

    Buy cheap High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler from wholesalers
    • Buy cheap High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler from wholesalers
    • Buy cheap High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler from wholesalers

    High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler

    Ask Lasest Price
    Brand Name : Fujioptic
    Model Number : Singlemode/Multimode
    Certification : ROHS, REACH, UL, ISO
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10,000 pcs per month
    Delivery Time : 3~7 work days
    • Product Details
    • Company Profile

    High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler

    High Stability Fiber Optic Splitter Multimode To Singlemode Fiber Coupler


    1ΧN Multimode Coupler


    Feature

    1.Passed Telcordia GR-1221-CORE, and 85°C,85%RH test up to 1500 hours
    2.Low excess loss


    Technical Specification

    Type

    1 Χ 2 Multimode Coupler( MMC )

    Wavelength(nm)

    850 or on Request

    Bandwidth(nm)

    ±20

    Coupling Ratio

    50/50

    40/60

    30/70

    20/80

    Grade

    P

    S

    P

    S

    P

    S

    P

    S

    Insertion
    Loss (dB)

    MA×

    3.7

    4.0

    4.7/2.7

    5.0/3.0

    6.0/2.1

    6.3/2.4

    7.8/1.4

    8.1/1.7

    Uniformity(dB)

    MA×

    0.5

    0.7

    /

    /

    /

    /

    /

    /

    Directivity(dB)

    ≥40

    Operating
    Temperature(°C)

    -20~75



    Type

    1 Χ N Monolithic Multimode Coupler( MMC )

    Wavelength(nm)

    850 or on Request

    Bandwidth(nm)

    ±20

    Coupling Ratio

    1Χ3

    1Χ4

    Grade

    P

    P

    S

    S

    P

    P

    S

    S

    Insertion
    Loss(dB)

    MA×

    5.4

    6.0

    ≤7.3

    ≤7.8

    Uniformity(dB)

    MA×

    0.9

    1.2

    ≤1.2

    ≤1.5

    Directivity(dB)

    ≥40

    Operating Temperature (°C)

    -20~75



    1ΧN Singlemode Coupler

    Feature

    1.Passed Telcordia GR-1221-CORE, and 85°C,85%RH test up to 1500 hours
    2.Low e×cess lossTechnical Specification

    Type

    1 Χ 2 Singlemode Coupler( SMC )

    Wavelength(nm)

    1310 , 1550 , 1310&1550

    Bandwidth(nm)

    ±20 , ±40

    Coupling Ratio

    50/50

    40/60

    20/80

    10/90

    Grade

    P

    S

    P

    S

    P

    S

    P

    S

    Insertion
    Loss(dB)

    MA×

    3.4

    3.6

    4.4/2.6

    4.6/2.8

    7.5/1.2

    8.0/1.3

    11.0/0.65

    12.0/0.8

    Uniformity(dB)

    MA×

    0.5

    0.7

    /

    /

    /

    /

    /

    /

    PDL(dB)

    MA×

    0.15

    0.2

    0.2

    0.25

    0.2

    0.25

    0.2

    0.3

    Directivity(dB)

    ≥50

    Operating
    Temperature(°C)

    -20 ~ 75

    Type

    1 Χ 2 Tap Coupler( WTC )

    Wavelength(nm)

    1550 or on Request

    Bandwidth(nm)

    ±20

    Coupling Ratio

    1/99

    2/98

    5/95

    Grade

    P

    S

    P

    S

    P

    S

    Insertion
    Loss(dB)

    MA×

    21.5/0.22

    20.0/0.3

    18.5/0.25

    19.5/0.35

    14.0/0.4

    14.5/0.5

    PDL(dB)

    MA×

    0.25/0.10

    0.30/0.15

    0.25/0.10

    0.30/0.15

    0.25/0.10

    0.30/0.15

    Directivity(dB)

    ≥50

    Operating
    Temperature(°C)

    -20 ~ 75

    Type

    Three-Windows Coupler( TWC )

    Wavelength(nm)

    1310&1490&1550

    Bandwidth(nm)

    1310±40 , 1490±10 , 1550±40

    Coupling Ratio

    50/50

    40/60

    20/80

    10/90

    Grade

    P

    S

    P

    S

    P

    S

    P

    S

    Insertion
    Loss(dB)

    MA×

    3.7

    4.0

    4.7/2.7

    5.0/3.0

    7.8/1.4

    8.1/1.7

    11.2/0.9

    11.6/1.2

    Uniformity(dB)

    MA×

    0.5

    0.7

    /

    /

    /

    /

    /

    /

    PDL(dB)

    MA×

    0.15

    0.2

    0.2

    0.25

    0.2

    0.25

    0.2

    0.3

    Directivity(dB)

    ≥50

    Operating
    Temperature(°C)

    -20 ~ 75

    Type

    1 Χ N Monolithic Singlemode Coupler( MSC )

    Wavelength(nm)

    1310 , 1550 or on Request

    Bandwidth(nm)

    ±20

    Coupling Ratio

    1 Χ 3

    1 Χ 4

    Grade

    P

    P

    S

    S

    P

    P

    S

    S

    Insertion
    Loss(dB)

    MA×

    5.4

    5.7

    7.0

    7.4

    Uniformity(dB)

    MA×

    0.8

    1.2

    1.2

    1.5

    PDL(dB)

    MA×

    0.2

    0.3

    0.2

    0.3

    Directivity(dB)

    ≥50

    Operating
    Temperature (°C)

    -20 ~ 75
